| Mictor Probes |
| Front Panel |
| Insert the Mictor probe into the A/B and C/D connectors on the front panel. Secure each probe with the captured screw... |
|
|
| Test Connection |

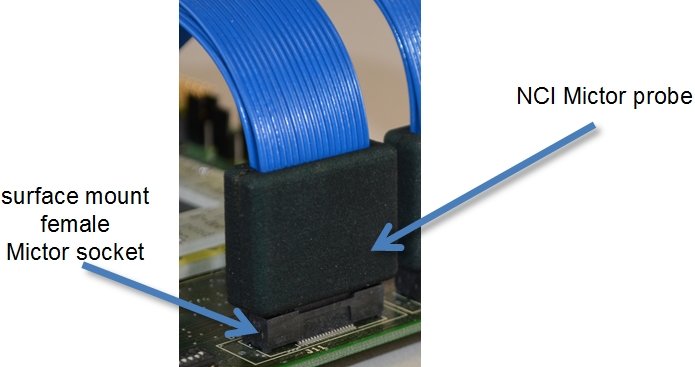

| The Mictor male end probe inserts into a female Mictor connector installed on your circuit board... |
|
|
| See the Appendix for a pin diagram of the female Mictor connector on your test circuit. |
| The Layout diagram is also available in PDF format. |
