| Numeric: Data Area |
|
|
| The Data Area displays the logic analyzer data in numeric format. |

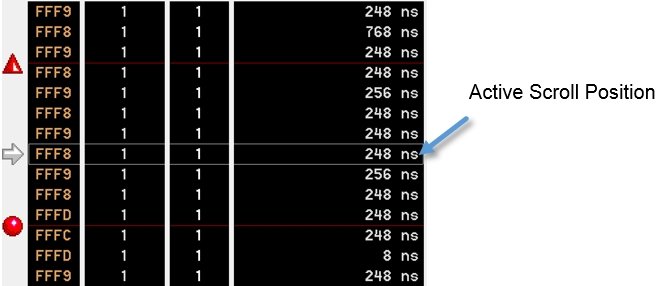

| Active Scroll Position |
| The Active Scroll Position is the center-line in the data area. This text line aligns the Numeric View with the other data views. By default, all data views remain aligned when scrolling the trace data. |
| An arrow token next to the data area emphasizes the Active Scroll Position. |
