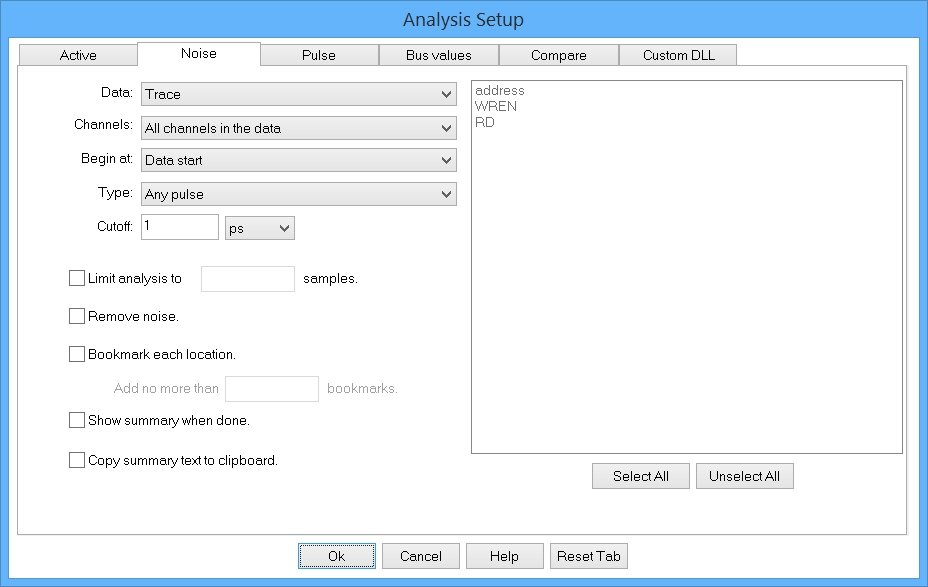

| Analysis Tools: Noise |
| Find all noise in the data. |
| The term "Noise" is defined as pulse-widths that are close to the sampling resolution used to capture the data. |
| For example, a 1 GHz sample rate has 1 nanosecond resolution. So noise would be pulse from 1 to 3 nanoseconds wide. |
|
|
| Source Data |
| Channels |
| Begin At |
| Pulse Type |
| Cutoff Time |
| Enter a time value which defines the widest noise. |
| The cutoff time should always approximate the sampling resolution. |
| Valid pulses should be 5X to 10X wider than the noise cutoff time. |
| Limit Analysis |
| Remove |
| Bookmarks |
| Summary |
