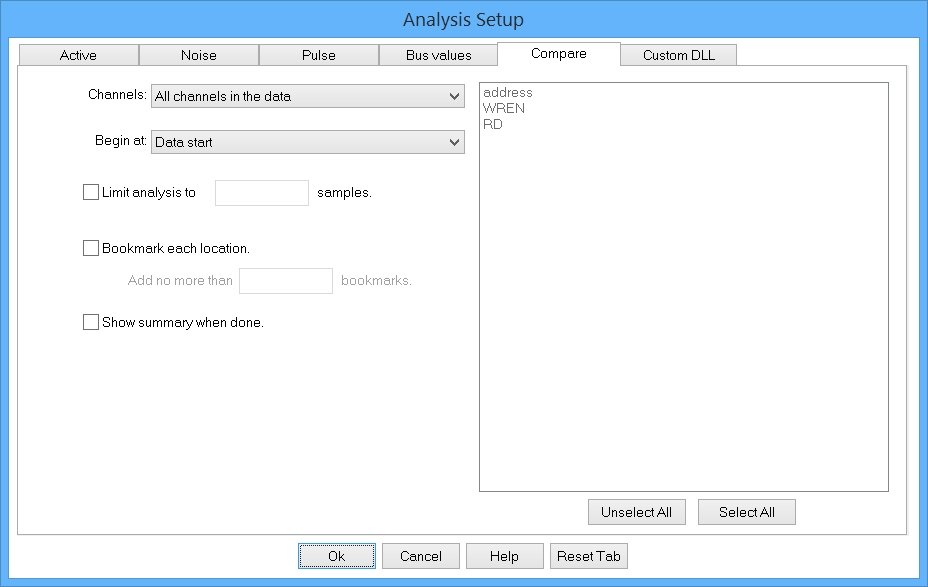

| Analysis Tools: Compare |
| An XOR (exclusive OR) comparison is made between the Trace and Reference data. |
| Both Trace and Reference data must be open for the Compare to be used. |
| A time-domain comparison is used so Trace and Reference data with different sampling rates or sampling methods to be compared accurately. |
| For example, Trace data captured using 1 GHz Transitional Timing can be accurately compared against Reference data captured using 50 MHz Normal Timing. |
|
|
| Channels |
| Begin At |
| Limit Analysis |
| Remove |
| Bookmarks |
| Summary |
